Text Domain Additional Attributes

From the Text domain overlay, you have an additional attributes option. The Text domain Additional Attributes overlay is shown in Figure 2-3-12.

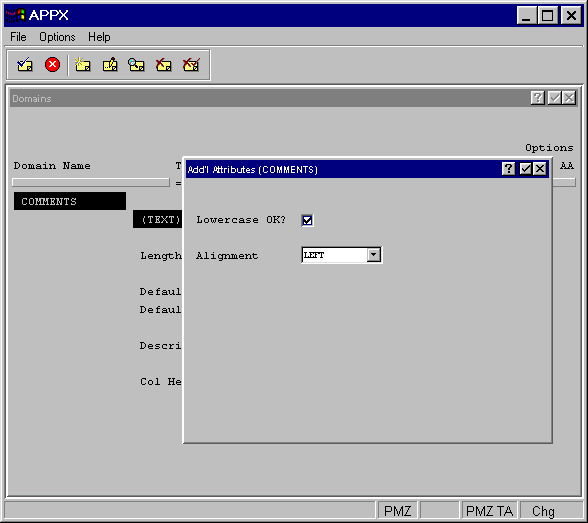

Figure 2-3-12. The Text Domain Additional Attributes Overlay

The Text Domain Additional Attributes Overlay contains the following fields:

·     Lowercase OK? indicates whether or not a modifiable item on an interactive screen can be entered in lowercase letters. If “no” iconcheckno.png, the entry is stored and displayed exclusively as uppercase, regardless of how a user enters the information. A lowercase value established with a statement displays as lowercase, even if this specification prohibits it. The default is “yes” iconcheckyes.png.

·     Alignment determines the alignment of data in a field. The Alignment options are NONE, LEFT, JUSTIFIED, RIGHT and CENTERED. This effects the display and storage. The default is NONE.
